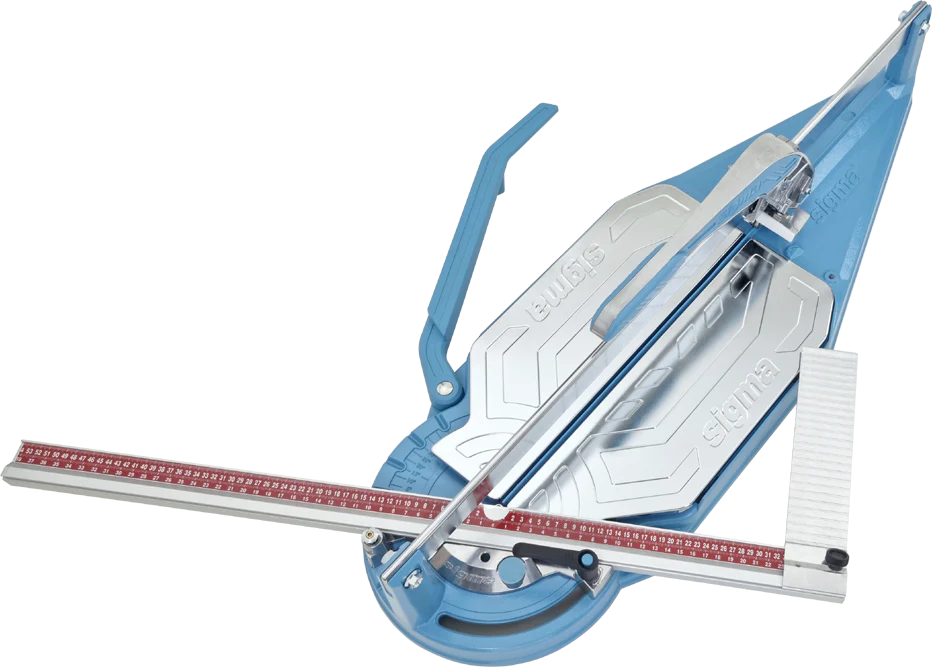

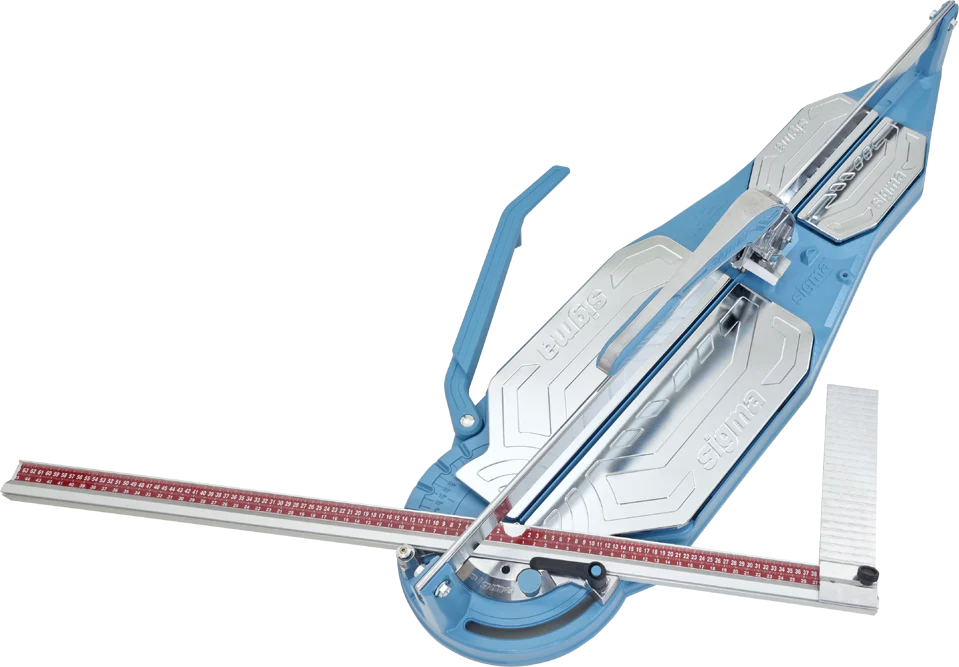

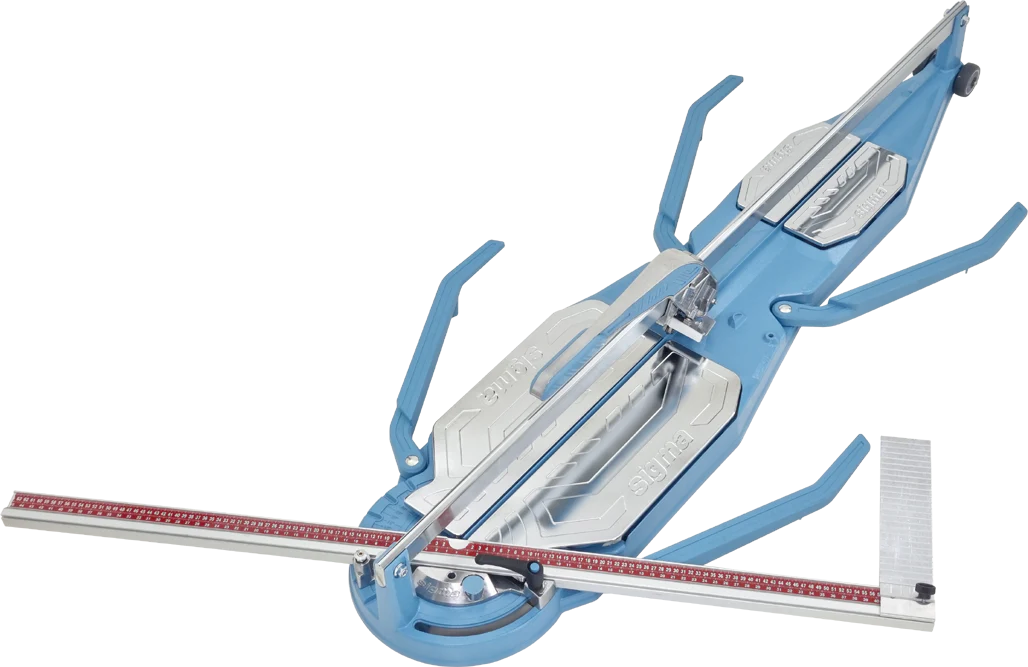

Sigma Series 4 "NEX" Push Handle Tile Cutters

Sigma Series 4 "NEX" Push Handle Tile Cutters – Push-Style Power and Precision

Stand out from the competitions with the Sigma Series 4 NEX Tile Cutter. The Sigma Series 4 Tile Cutter is a robust tool that lets you achieve consistently precise cuts even on the most challenging tiles. Featuring an ergonomic handle and a 16mm diameter scoring wheel, the Sigma Series 4 Tile Cutter delivers reliable precision in every cut. Like all Sigma products, the Sigma Series 4 NEX is precision-engineered to deliver outstanding results. Sigma Series 4 NEX Tile Cutters are engineered and crafted to cut even the largest, thickest tiles precisely to deliver flawless results on every project.

Features:

• Exceptional cutting capabilities: Double suspension system and advanced roller bearings provide the smoothest and deepest possible scores, even for textured tiles.
• An ergonomic NEX handle:  Designed for easy pushing incision with minimal effort, it is also effective on rough, thick and large format tiles.
• An innovative double suspension scoring wheel: Premium suspension capabilities facilitate cushioned scoring of structured tiles. The scoring wheel rotates on a roller bearing, laterally guided by an anti-friction metal shell that is inserted in a CNC-milled holder to minimize friction and lateral clearance.
• User-friendly functionality: The 16mm diameter scoring wheel is plainly visible on the operator side at all times. The lift handle facilitates automatic deployment of the foot.
• Splitting foot protection: The 120mm wide splitting foot, with replaceable anti-marking prevention features, enhances durability and stability while making cuts.
• A clearance-free sliding carriage: Three double-row ball bearings ensure long-lasting precision with little maintenance required.
• Precision tile cutting optimization: The automatic handle system keeps the handle raised so tiles can be easily inserted.
• Automatic steel compensator: This tile cutter provides slide preload to precisely adjust the tile on the rail to maintain consistent performance during cutting.

Model 4BN:  Rip/Diagonal/Depth of cut (inches) = 24.4″ / 17.2″ / 3/4".  Weighs 23 lbs.

Model 4CN:  Rip/Diagonal/Depth of cut (inches) = 29.9" / 21.1" / 3/4".  Weighs 28 lbs.

Model 4DN:  Rip/Diagonal/Depth of cut (inches) = 37.4″ / 26.4″ / 3/4″.  Weighs 33 lbs.

Model 4EN:  Rip/Diagonal/Depth of cut (inches) = 49.2" / 34.8″ / 3/4″.  Weighs 47lbs.
